Electric Trim Series

Electro Trim (Electric) A light duty electric paper cutter specifically designed for the single sheet environment. Cutter head is mounted on a round chrome guide rail with ball bearings. The trimmer head cuts in both directions at sixty inches per second. Either the convenient "touch bar actuator" or foot pedal can be used to initiate each trim. The unique design of the end frames on the trimmer permits the cutting of materials longer than the trimmer itself. Fixing bar and roll holder are options.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Trim 100     ET100 39 in $ 2704
Electric Trim 130     ET130 51 in $ 2863
Electric Trim 150     ET150 59 in $ 3022
Electric Trim 200     ET200 79 in $ 3659
Electric Trim 250     ET250 98 in $ 4454

Material Thickness
Paper 32 mil

Optional Items Price
100 Roll Holder $ 230
130 Roll Holder $ 251
150 Roll Holder $ 251
200 Roll Holder $ 293
250 Roll Holder $ 335
Containment Brackets for 200/250 $ 64

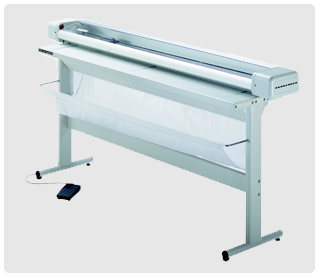

Electric Power Trim Plus Series

Electro Power Trim Plus (Electric) This high-speed, medium duty workhorse of a paper cutter, features a reinforced cutting head mounted on a square chrome plated guide rail with ball bearings. Cutting head cuts in both directions at twenty inches per second. Trimmer design facilitates horizontal output of trim edge for hand pickup or receiving table delivery. Engineering of the end frames permits the cutting of materials longer than the trimmer itself. Either the convenient "touch bar actuator" or foot pedal can be used to initiate each trim. Paper cutter is shipped with an adjustable reference guide, stand and lamp; the fixing bar is a factory-installed option.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Power Trim 145     EPT145 57 in $ 4923
Electric Power Trim 165     EPT165 65 in $ 5258
Electric Power Trim 210     EPT210 83 in $ 5927
Electric Power Trim 250     EPT250 98 in $ 6781
Electric Power Trim 300     EPT300 118 in $ 8288
Electric Power Trim 360     EPT360 142 in $ 9963

Material Thickness
Canvas 30 mil
Laminate 20 mil
Lexan 15 mil
Paper 70 mil
Styrene 15 mil
Vinyl 30 mil

Optional Items Price
145 Roller Holder $ 251
165 Roller Holder $ 251
210 Roller Holder $ 293
250 Roller Holder $ 335
300 Roller Holder $ 377
360 Roller Holder $ 377
Optional: Adj Speed & 2 cutting widths (Special Or $ 1674




Electric Strong Trim Pro Series

Electro Strong Trim Pro (Electric) This heavy-duty standard of the industry features tandem dual blades mounted in a reinforced cutting head. The cutter head is then mounted on a chrome plated rectangular guide rail with ball bearings. Bi-directional cuts at variable speeds of up to 19 inches per second are possible, dependent on the composition of the substrate being cut. Design of the electric trimmer permits horizontal output of trim edge for hand pickup or receiving table for delivery. Unit is shipped with stand, lamp, two adjustable reference guides and fixing bar. Roll holder is optional.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Strong Trim Pro 165     EST165 65 in $ 10783
Electric Strong Trim Pro 210     EST210 83 in $ 11453
Electric Strong Trim Pro 260     EST260 102 in $ 12307
Electric Strong Trim Pro 320     EST320 126 in $ 13479

Material Thickness
Laminate 45 mil
Lexan 45 mil
Paper 170 mil
Styrene 45 mil
Vinyl 45 mil

Optional Items Price
165 Roller Holder $ 251
210 Roller Holder $ 293
260 Roller Holder $ 335
320 Roller Holder $ 377

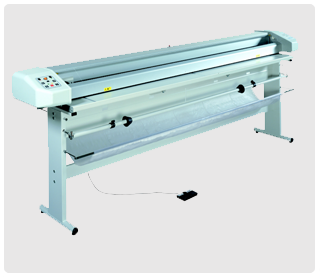

Electric Super Trim Series - (Special Order)

Electro Super Trim (Electric) This industrial strength, feature rich precision trimmer was designed to meet the exacting demands of large panel sign and exhibit builders. Its heavy duty construction facilitates the trimming of non-ridged substrates up to 65mil thick. Cutter head operates bi-directionally at incrementally variable speeds to match the cutting requirements of various substrates. The cutter head is then mounted on a chrome plated rectangular guide rail with ball bearings and travels at speeds of up to 19 inches per second. Activating a convenient foot petal actuates the cutting function with compressor to activate fixing bar. The units electrically operated fixing bar stabilizes the material being cut. The design of the system permits horizontal output of trim edge for hand pickup or receiving table for delivery. The Electro Super Trim is equipped with dual "Laser Designators" which generate a florescent red "cut line", designating precisely where the cutter blade will cut. Unit is shipped with stand, lamp, roll holder and two adjustable reference guides. This is a special order unit check with us for lead times.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Super Trim 165     SET165 65 in $ 16827
Electric Super Trim 280     SET280 110 in $ 20176
Electric Super Trim 340     SET340 134 in $ 22520
Electric Super Trim 520     SET520 205 in $ 25199

Material Thickness
Laminate 65 mil
Lexan 65 mil
Paper 400 mil
Styrene 65 mil
Vinyl 65 mil

Optional Items Price
Compressor Silent-Air $ 1507
Textile Super Trim Add On (Special Order) $ 4019

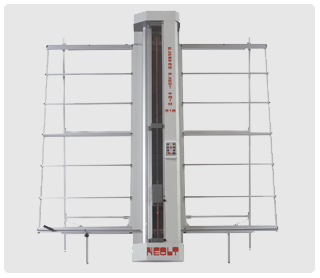

Electric Plexi Trim Series - (Special Order)

Plexi-Trim The Neolt Plexi- Trim is an electric powered, high speed cutting system designed to operate in a vertical environment and produce precision cuts up to one-quarter inch deep in Plexiglas, Acrylic, Dibond, Forex, Alibond and Sintra up to 1/4". The router type cutter is supplied with two interchangeable milling heads which can be matched to fit your cutting requirements for clean, smooth, precise finished cuts. Electrically operated dual fixing bars hold both sides of the substrate being cuts so that there is no movement. Cutting speed is continuously variable up to forty feet per minute, dependent on characteristics of the material being cut. The systems "Laser Designator" lays down a vivid florescent "cut line," so that the operator is always able to accurately align the cut prior to beginning the cutting process. The "Plexi-Trim" system control pad gives the operator access to all of the trimmers operating systems including "up and down" motor control, variable speed selector, "panic stop", electronic fixing bar operation and waste take-off. Left and right lateral extensions as well as a vertical support stand are included.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Plexi Trim 210     PLEX210 83 in $ 33592
Electric Plexi Trim 310     PLEX310 122 in $ 36522

Optional Items Price
210 Left Lateral Extension $ 1046
210 Right Lateral Extension $ 1046
310 Left Lateral Extension $ 1256
310 Right Lateral Extension $ 1256

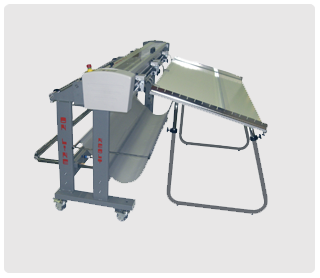

XY Matic Trim - (Special Order)

Electro "XY" Trim This precision cutter is designed to produce simultaneous cuts on all 4 edges of images being cut from large format rolls or sheets. The systems adjustable optical sensor is able to read a large array of industry standard printed "cut marks" for the precise alignment of horizontal cuts. Multiple vertical cuts are manually set with adjustable slitter blades. LCD keypad control has 9 speed settings, with the capacity of 40 preset channels. Preset channels allow for convenient switching of materials being cut for maximum accuracy. Cutter provides for automatic cut programming for sheeting of blank material. Corrosion resistant, chrome steel cutting blades provide enhanced protection against corrosion and wear. The unit comes complete with stand and waste catch basket.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
XY Matic Trim     EXY165 65 in $ 25220 --- ---

Optional Items Price
Exit Table for Kit on Line $ 1046
Extra Front Cutting Unit $ 1256
Extra Twin Front Cutting Unit $ 2512
Kit Laser for Front Cutting Unit $ 628
Kit on Line $ 3349

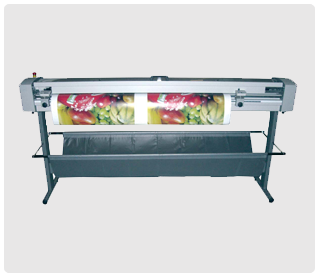

XY Sheet Dispenser Trim - (Special Order)

Semiautomatic Trim can be programmed to cut pre-printed rolls.Horizontal cutting carriage (X axis) with rotary blades for the vertical cut as well (Y axis). For the vertical cut the blade is being placed manually and can be adjusted with a millimetric sliding bar. Max cutting width 1650mm, Max cutting thickness 1mm, Horizontal cutting speed 40mt/min, Vertical cutting speed 12,5mt/min.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
XY Sheet Dispenser Trim     EXYD160 65 in $ 21034 --- ---

Optional Items Price
Extra Front Cutting Unit $ 1256
Extra Twin Front Cutting Unit $ 2512
Kit Laser for Front Cuttong Unit $ 628
