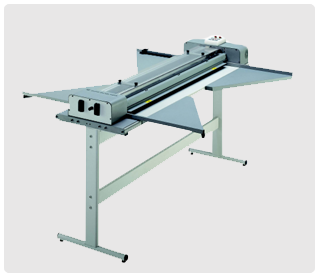

Horizontal Electric Foam Trim Plus Series

Electro Foam Trim Plus, Horizontal (Electric) This electric foam trimmer is available in both vertical and horizontal configurations. Fixed blade cutting head is constructed from hardened steel; precisely aligned by dual aluminum guide rails and driven by a one-quarter horsepower motor coupled with a positive chain drive. Variable speed cutting head operates at 6 inches per second on the cut. Return speed is variable dependent on the substrate being cut. Both configurations are supplied with 5, 10, 20 and 30-mm cutting heads for scoring, single pass or bi-directional cuts. Precise targeting of each cut is accomplished with the aid of a "Laser Designator" alignment system. Controls include "up" and "down" motor control, variable speed selector and "panic stop" push buttons. Fixing bar adjusts to height of substrate, automatically stabilizing the sheet for clean, crisp cuts and eliminates pinching of substrate edges. Left and right lateral extensions as well as an adjustable reference bracket are supplied with each trimmer. The electric foam trimmer will cut a variety of substrates including rigid foam board up to 1.18 inches (30mm) or Sintra up .50 inch (13mm). Oversize left and right lateral extensions are optional.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Foam Trim Plus Horizontal 160     HEFT160 63 in $ 12139
Electric Foam Trim Plus Horizontal 250     HEFT250 98 in $ 14483
Electric Foam Trim Plus Horizontal 310     HEFT310 122 in $ 15488

Optional Items Price
Left Lateral Extension $ 422
Right Lateral Extension $ 422

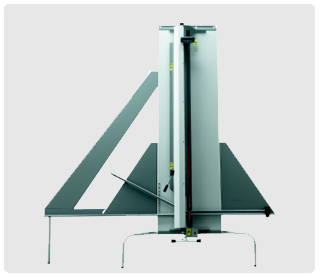

Vertical Electric Foam Trim Plus Series

Electro Foam Trim Plus, Vertical (Electric) This electric foam trimmer is available in both vertical and horizontal configurations. Fixed blade cutting head is constructed from hardened steel; precisely aligned by dual aluminum guide rails and driven by a one-quarter horsepower motor coupled with a positive chain drive. Variable speed cutting head operates at 6 inches per second on the cut. Return speed is variable dependent on the substrate being cut. Both configurations are supplied with 5, 10, 20 and 30-mm cutting heads for scoring, single pass or bi-directional cuts. Precise targeting of each cut is accomplished with the aid of a "Laser Designator" alignment system. Controls include "up" and "down" motor control, variable speed selector and "panic stop" push buttons. Fixing bar adjusts to height of substrate, automatically stabilizing the sheet for clean, crisp cuts and eliminates pinching of substrate edges. Left and right lateral extensions as well as an adjustable reference bracket are supplied with each trimmer. The electric foam trimmer will cut a variety of substrates including rigid foam board up to 1.18 inches (30mm) or Sintra up .50 inch (13mm). Oversize left and right lateral extensions are optional.

Trimmer Order Number Cutting   Width Price Manual Parts Brochure
Electric Foam Trim Plus Vertical 160     EVFT160 63 in $ 12570
Electric Foam Trim Plus Vertical 250     EVFT250 98 in $ 15032
Electric Foam Trim Plus Vertical 310     EVFT310 122 in $ 16087

Optional Items Price
Left Lateral Extension $ 422
Right Lateral Extension $ 422
