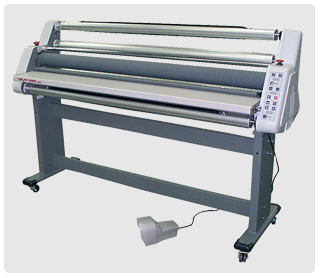

Neolam Series C

Neolam Series "C" Laminator provide a wide range of easy to use laminating technology. The "C" series is cost effective; full function alternative for your "point of use" cold laminating requirements. Innovative design of the entire system facilitates easy loading and alignment of media and substrates. Media thickness adjustments as well as temperature control of the upper roller are implemented via a visual display and electronic keypad. Feed table rotates to permit easy loading of laminates. Safety features includes foot pedal for hand free operation, integrated safety system with emergency stop and optical safety sensors.

  1650C 2050C
Max Operating Width   65 in 81 in
Max Speed   13 ft./min. 13 ft./min.
Max Substrate Thickness   1 1/8 in 1 1/8 in
Max Hot Temperature   122°F - 50°C 122°F - 50°C
Max Cold Temperature   --- ---
Core Diameter   3 in 3 in
Machine Dimensions   78 in x 23 in x 50 in 94 in x 23 in x 50 in
Machine Weight   331 lbs 397 lbs
Voltage   110V - 60Hz 110V - 60Hz
Manual   --- ---
Parts   --- ---
Brochure

Optional Items
Laminator Roller Holder

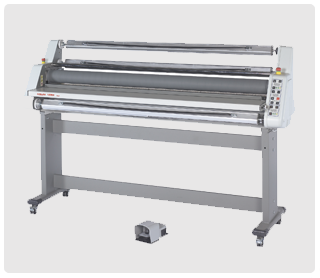

Neolam Series M

Neolt "M" Series is the "ultimate" in two roll, hot laminator technology. The "M" series is a full function alternative for your hot laminating requirements. Innovative design of the entire system facilitates easy loading and alignment of media and substrates. Media thickness adjustments as well as temperature control of the upper and lower rolls are implemented via a visual display and electronic keypad. Speed adjustments are also made from the keypad. Incremental adjustment of the film tension is achieved through an electronic clutching system. A foot pedal facilitates hands free operation. An integrated safety system incorporates optical sensors and emergency stop capabilities.

  1650M
Max Operating Width   65 in
Max Speed   13 ft./min.
Max Substrate Thickness   1 1/8 in
Max Hot Temperature   230°F - 110°C
Max Cold Temperature   113°F - 45°C
Core Diameter   3 in
Machine Dimensions   78 in x 23 in x 50 in
Machine Weight   397 lbs
Voltage   220V - 50Hz
Manual   ---
Parts   ---
Brochure   ---

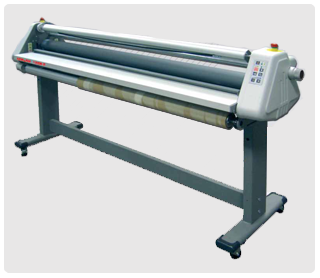

Neolam Series CE

Laminators for cold lamination, film adhesive and mounting. Ideal for large format digital print finishing.

  1100CE 1400CE
Max Operating Width   43 in 55 in
Max Speed   13 ft./min. 13 ft./min.
Max Substrate Thickness   1 1/8 in 1 1/8 in
Max Hot Temperature   --- ---
Max Cold Temperature   113°F - 45°C 113°F - 45°C
Core Diameter   3 in 3 in
Machine Dimensions   23 in x 50 in x 36 in 23 in x 50 in x 36 in
Machine Weight   265 lbs 314 lbs
Voltage   230V - 50Hz 230V - 50Hz
Manual   --- ---
Parts   --- ---
Brochure   --- ---

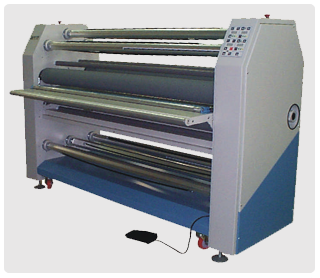

Neolam Series Dual F

Laminators for plastification, encapsulation or panels mounting; with cold and hot film simultaneously with double hot roll.

  1650 2050
Max Operating Width   64.96 in 80.71 in
Max Speed   13 ft./min. 13 ft./min.
Max Substrate Thickness   1.96 in 1.96 in
Max Hot Temperature   248°F - 120°C 248°F - 120°C
Max Cold Temperature   122°F - 50°C 122°F - 50°C
Core Diameter   3 in 3 in
Machine Dimensions   33.9 in x 82.7 in x 45.7 in 33.9 in x 98.4 in x 45.7 in
Machine Weight   1433 lbs 1653 lbs
Voltage   380V - 50Hz 380V - 50Hz
Manual   --- ---
Parts   --- ---
Brochure   --- ---

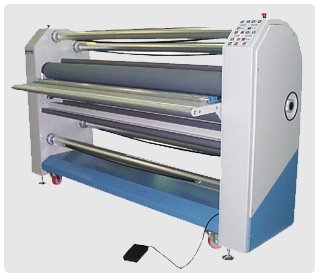

Neolam Series H

Laminators for plastification, encapsulation or panels mounting; cold or hot film with double hot roll.

  1650 2050
Max Operating Width   64.96 in 80.71 in
Max Speed   13 ft./min. 13 ft./min.
Max Substrate Thickness   1.57 in 1.57 in
Max Hot Temperature   248°F - 120°C 248°F - 120°C
Max Cold Temperature   122°F - 50°C 122°F - 50°C
Core Diameter   3 in 3 in
Machine Dimensions   24.8 in x 82.7 in x 50 in 24.8 in x 98.4 in x 50 in
Machine Weight   1102 lbs 1432 lbs
Voltage   380V - 50Hz 380V - 50Hz
Manual   --- ---
Parts   --- ---
Brochure

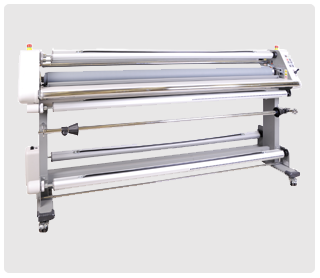

Neolam Series PE

Compact and simple laminator, but designed for optimal results in graphic and advertising field. Allowed in simultaneous cold lamination and adhesive film application for mounting.

  1650PE
Max Operating Width   65 in
Max Speed   7 ft./min.
Max Substrate Thickness   0.79 in
Max Hot Temperature   ---
Max Cold Temperature   122°F - 50°C
Core Diameter   3 in
Machine Dimensions   22.5 in x 80.7 in x 45.7 in
Machine Weight   297.6 lbs
Voltage   230V - 50Hz
Manual   ---
Parts   ---
Brochure
